| اسم العلامة التجارية: | Lei Kan |
| رقم الموديل: | LKXR-KD106 |
Ⅰ. Overview

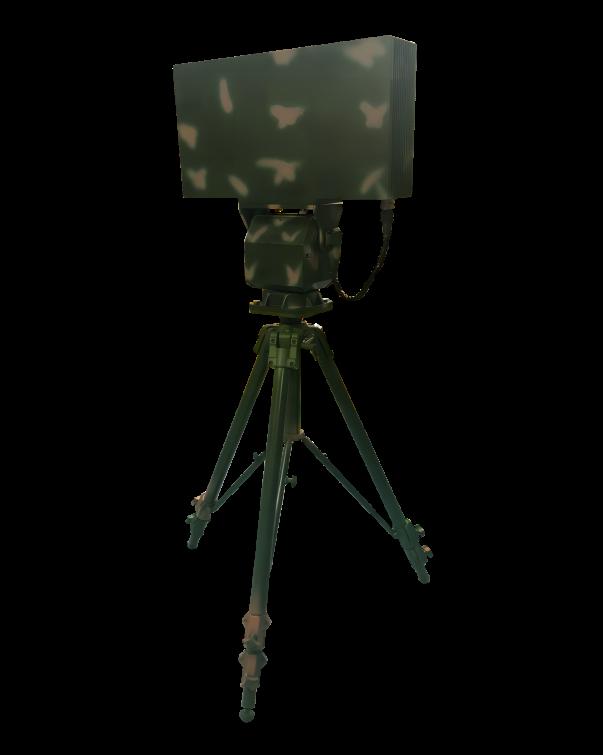

The LKXR-KD106 is a Ku-band low-altitude surveillance radar using azimuth mechanical scan plus elevation frequency scan to achieve 360° coverage at low cost.
Ⅱ. Highlights
1. ≥3 km detection on 0.01 m² RCS drones
2. Frequency-scan elevation cuts cost vs. phased array
3. Man-packable ≤29 kg total weight
4. ≤10 m range accuracy for fire-control cueing
Ⅲ. Specifications
|
Parameter |
Value |
|
Radar type |
Azimuth mechanical + elev. freq-scan |
|
Frequency band |
Ku-band |
|
Coverage |
Azimuth 360°; Elevation 0-40° |
|
Antenna speed |
30°/s or 60°/s |
|
Detection range (Pd=0.8) |
≥3 km (RCS=0.01 m²) |
|
Blind range |
150 m |
|
Range resolution / accuracy |
≤15 m / ≤10 m |
|
Azimuth resolution / accuracy |
≤2.5° / ≤0.5° |
|
Elevation resolution / accuracy |
≤10° / ≤1° |
|
Velocity accuracy |
1 m/s |
|
Target radial velocity |
1.5–80 m/s |
|
Max tracked targets |
≥100 |
|
Transmit power |
80 W |
|
Front-end size & weight |
610×650×120 mm; ≤17 kg |
|
Servo weight |
≤12 kg |
Ⅳ. Features
1. High sensitivity, strong ECCM, robust performance
2. Breakthrough capability against low-slow-small targets
3. Rapid deployment & withdrawal for mobile forces
