| اسم العلامة التجارية: | Lei Kan |
| رقم الموديل: | LKXW-SR132 |

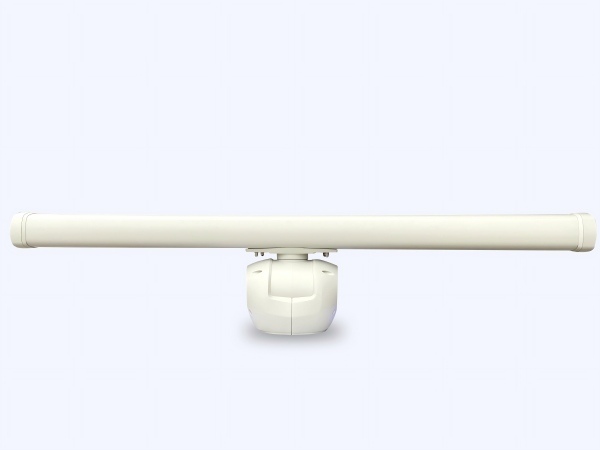

Ⅰ. Product Functions and Applications
The radar is capable of detecting both moving and stationary targets at sea. By utilizing the electromagnetic wave reflection characteristics of surface targets and filtering out sea clutter and other interference, the radar processes the reflected signals to obtain accurate information on target range, bearing, speed, and reflection intensity, as well as to track the target's movement trajectory.
Ⅱ. Main Technical Specifications
|
Item |
Performance Parameter |
|
Operating Mode |
Solid-state pulse compression (azimuth mechanical scan) |
|
Operating Frequency Band |
X-band |
|
Maximum Detection Range |
≥ 20 km (for fishing boats or speedboats) |
|
Minimum Detection Range |
≤ 100 m |
|
Azimuth Coverage |
360° |
|
Beamwidth |
Horizontal: 1.2°Elevation: 25° |
|
Range Accuracy |
≤ 10 m or 1% of range whichever is greater |
|
Azimuth Accuracy |
≤ 1° |
|
Data Update Rate |
≥ 0.4 Hz |
|
Power Consumption & Tx Power |
Power consumption: ≤ 200 W Transmit power: 25 W ±10% (under any transmit condition) – max 10% duty cycle |
|
Target Capacity |
100 targets |
|
Data Interface |
RJ45 / 1×100 Mbps Ethernet (UDP protocol) |
|
Operating Environment |
Operating temperature: –25°C to +55°C Relative humidity: 93% RH at +40°C Protection rating: IP66 Includes protection against rain dust sand moisture salt mist and mold |
|
Dimensions |
Antenna: 2100 × 135 mm Rotator: 324 × 339 × 262 mm Control box: 385 × 230 × 114 mm |
|
Weight |
System (after unpacking): ≤ 36 kg |
Ⅲ. Project Demonstration
